Switch to the German version of this Howto.

APCupsd can do much more than you realize. Not just serial or USB, or via SNMP ethernet cards. No, with the software it is possible to build active UPS clusters, clients (slaves) do not even have to use an APCusv. Any UPS is welcome. I will describe the following options in this HowTo:

APC UPS connected via USB
APC UPS is used as a power source, but is not connected to the client via USB or other cable
Other brands of UPS

What is it not?

It is not a central configuration or control interface.

What can I do with it?

Central overview of all connected devices/UPSs and their power/battery status
Shutdown of devices that do not have a data connection to their UPS or use a third-party UPS
Control a single large central UPS

In the test here, 4 APC UPSs were used, but 5 servers were connected. Whereby one extra server was configured on an APC's, where the USB interface of the UPS is already used by the other server and therefore has no data connection. The systems used here are Proxmox 6.3, Ubuntu 20.04 und Raspbian 10 Buster. APCupsd must be installed and configured on all devices.

The package is already included in all distributions and can be easily installed via the package management.

apt install apcupsd

The first step is to edit the file /etc/default/apcupsd and set ISCONFIGURED=no to ISCONFIGURED=yes Next, go to the main configuration of APCupsd:

nano /etc/apcupsd/apcupsd.conf

These are the most important points:

UPSNAME myUSVname_which_I_would_like_to_assign
UPSCABLE usb
UPSTYPE usb
ONBATTERYDELAY 6    #Time period in seconds from which the system service assumes a power failure. Useful to be able to ignore very short outages.
BATTERYLEVEL 10     #Remaining capacity reported by the UPS in percent, from which the computer is shut down
MINUTES 5	    #Time buffer in minutes that is taken into account for the shutdown.

You will probably want to adjust the values to your circumstances. After restarting the APCupsd systemctl restart apcupsd.service, you can immediately output the current values of the UPS on the CMD with the command apcaccess. This completes the basic configuration of an APC UPS.

Now we want to make one of our servers the UPS master server. You have to decide which one this may be. Ideally a server/PC/device with the longest battery life, as devices that do not have a data connection to an APC UPS cannot initiate a shutdown without this server. You also need to think about which devices should be shut down at which level when configuring the client. The level of the external usv cannot be measured, you set these values yourself on this client in apcupsd.conf. And without a connection to the master server, these are also logically ignored.

nano /etc/apcupsd/apcupsd.conf

We will change the following values: (some are already set by default)

NETSERVER on
NISIP <allowed subnet> #default value here is 0.0.0.0

Install the server components:

apt update
apt install apache2-utils apcupsd-cgi apache2
a2enmod cgi
systemctl restart apache2.service

Now adjust the default Index.html: /var/www/html/index.html

<html>
        <head>
                <meta http-equiv="refresh" content="0; URL=http://FQDN-of-your-server/cgi-bin/apcupsd/multimon.cgi">
        </head>
</html>

Your master server is now available on the network.

An APC client itself has an APC UPS with a data connection and is able to control the shutdown itself. In this case, we let the client grow into the central overview. We edit the apcupsd.conf on our client. The following parts of the config must be observed:

UPSNAME myUSVname_which_I_would_like_to_assign
UPSCABLE usb
UPSTYPE usb
ONBATTERYDELAY 6    #Time period in seconds from which the system service assumes a power failure. Useful to be able to ignore very short outages.
BATTERYLEVEL 10     #Remaining capacity reported by the UPS in percent, from which the computer is shut down
MINUTES 5	    #Time buffer in minutes that is taken into account for the shutdown.
NETSERVER on
NISIP #The IP of this client is entered here, e.g. 192.168.4.88
NISPORT 3551

systemctl restart apcupsd.service activates the current config. This APC can now be accessed via the network and can be configured to the master server in the next step.

An APC client (slave) is of course connected to a UPS. This does not have to be an APC. The most important difference here is that this client has no data connection to the UPS to which it is connected. In other words, APCupsd does not know the status of the battery or the power supply. It is therefore not triggered even in the event of a power failure. In order to be able to shut down such a client in a controlled manner, we let it look at the master server. We edit the apcupsd.conf on our client. The following parts of the config must be observed:

UPSNAME myUSVname_which_I_would_like_to_assign
UPSCABLE usb
UPSTYPE net
DEVICE FQDN-MasterServer:3551
ONBATTERYDELAY 6    #Time period in seconds from which the system service assumes a power failure. Useful to be able to ignore very short outages.
BATTERYLEVEL 10     #Remaining capacity reported by the UPS in percent, from which the computer is shut down
MINUTES 5	    #Time buffer in minutes that is taken into account for the shutdown.
NETSERVER on
NISIP #The IP of this client is entered here, e.g.  192.168.4.88
NISPORT 3551

systemctl restart apcupsd.service activates the current config. This APC can now be accessed via the network and can be configured to the master server in the next step.

If the power „ONLY“ fails at this one UPS (APC client/slave), neither the master nor the client will notice. The shutdown only works here if the master also switches to battery power. If the master switches to battery power and the client has normal line power, the client is still shut down according to the values set in the config.

The basic idea here is definitely to use a large central UPS, and not to use lots of small UPSs scattered around, or even third-party APCs. But yes, as we have seen, this can work well too.

This is done quickly and easily. nano /etc/apcupsd/hosts.conf

MONITOR benno.tux.lan "benno.tux.lan Proxmox"
MONITOR backup.tux.lan "backup.tux.lan Proxmox"
MONITOR pc-fredi.tux.lan "pc-fredi.tux.lan Ubuntu"
MONITOR dns.tux.lan "dns.tux.lan raspberry pi"
MONITOR nas.tux.lan "nas.tux.lan Datenspeicher"

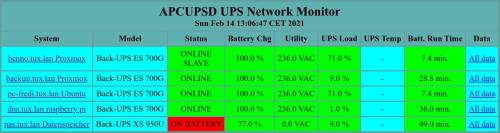

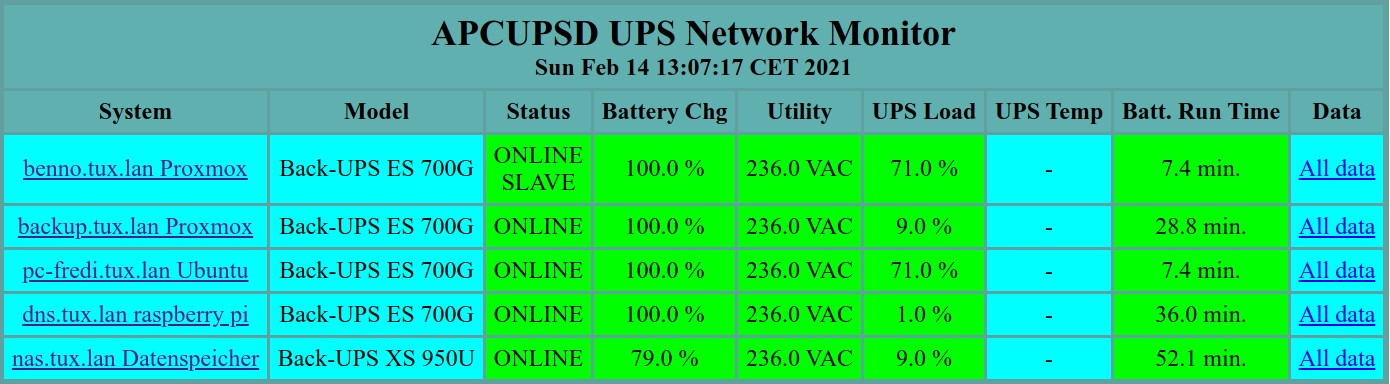

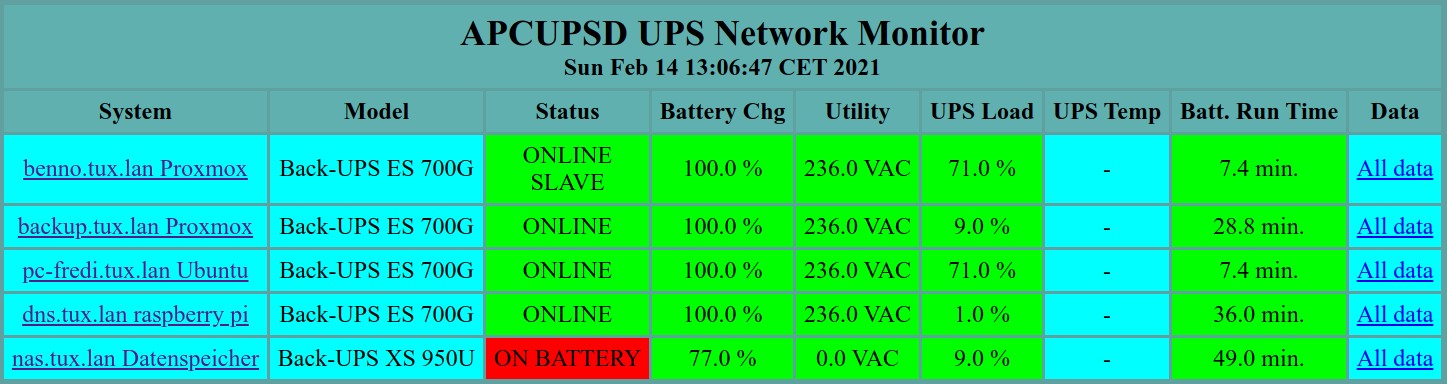

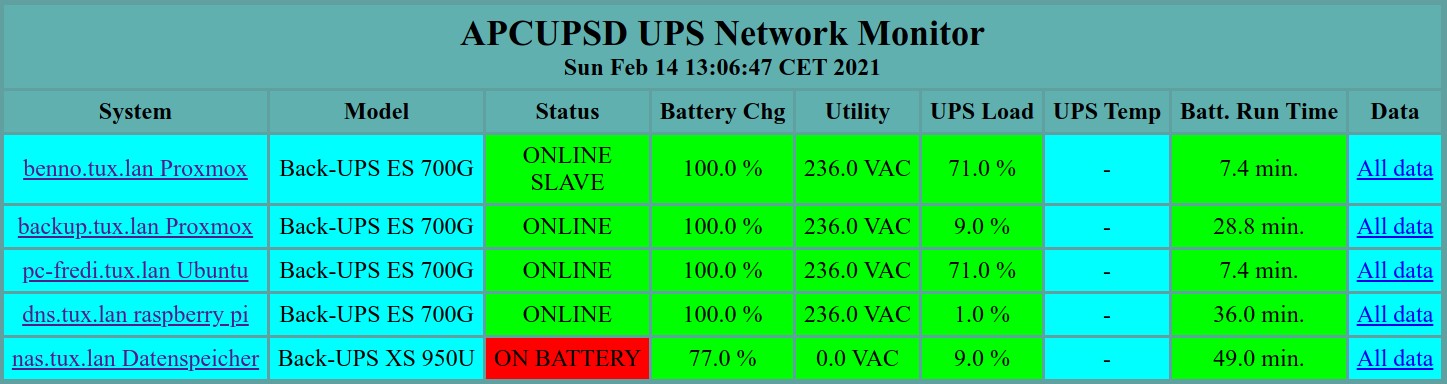

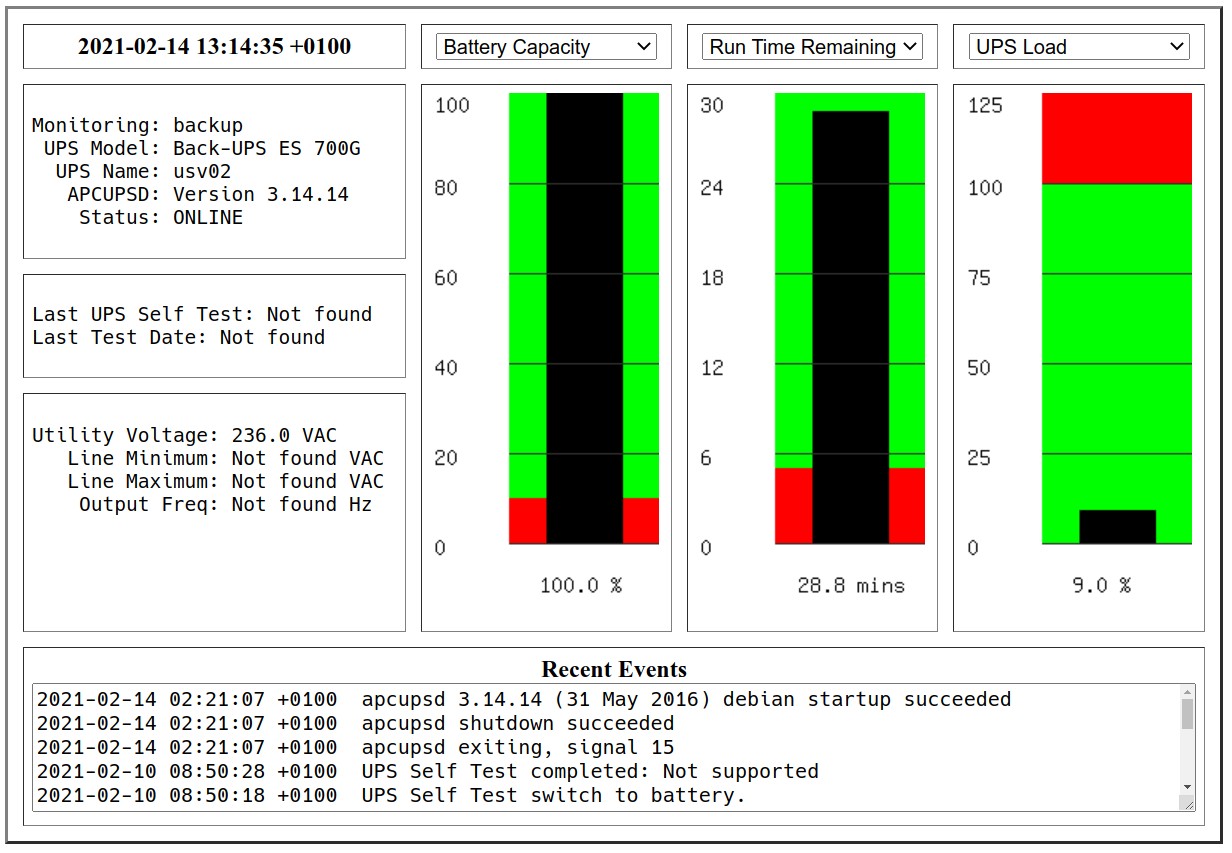

All devices are now immediately visible in the central web interface: http://FQDN-from-your-master-server/cgi-bin/apcupsd/multimon.cgi Click on an image for a bigger view.
